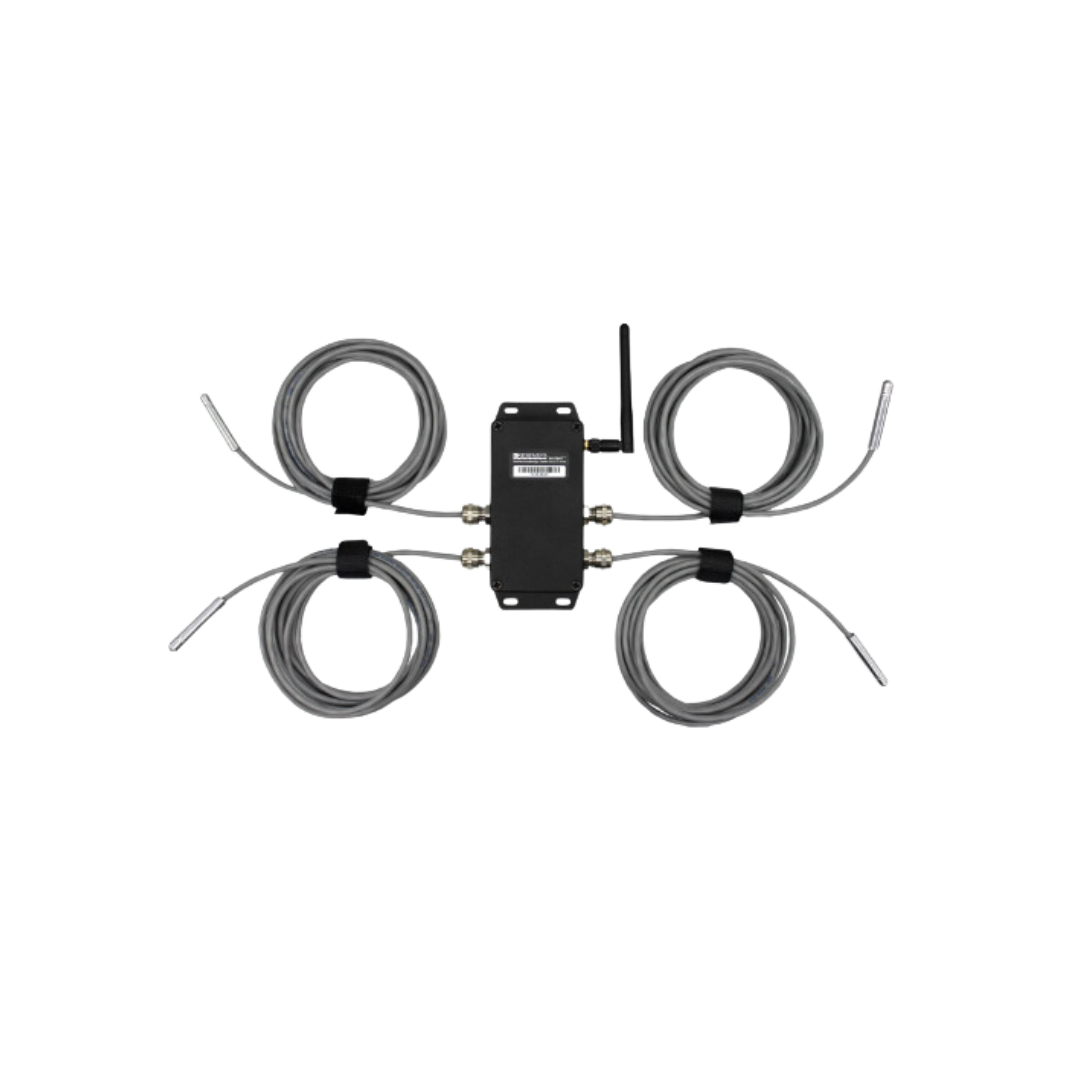

Wireless 4 Channel Temperature Probe SenSpot™

Description

SenSpot™ provides an easy to install, scalable solution for distributed structural integrity monitoring. SenSpot™ Temperature Sensor uses Resensys’s proprietary technology for reliable and accurate measurement, large-scale sensing, wireless synchronization and ultra energy-efficient wireless communication.

SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance for at least 10 years. Due to small size and lightweight, SenSpot™ sensors can be applied easily to as many critical spots on a structure as needed, with minimal installation effort.

Temperature SenSpot™ can be used to monitor temperature on structural elements of bridges, buildings, etc.

10+ Years Battery Life

without battery replacement

High Precision

0.1mm/s (0.004 in/sec) resolution

Easy Installation

self-adhesive(e.g. steel)/
flange-mount(e.g. concrete)

Wireless Structural Health Monitoring Solution

Long Wireless Range

1 km fee space

Quick Testing Available

easy to reuse in other places

Wide Working Temperature

-40 to +65°C (-40 °F to +150°F)

Featured Applications

• Outdoor ambient temperature monitoring
• Concrete and steel temperature monitoring

Specs & Details

• Long lifetime: No battery replacement is needed after installation
• Long lifetime: (battery life of 10 years)
• Multi-channel synchronized sensing: Up to 4
channels
• Wireless communication: IEEE 802.15.4
• Lightweight (about 550 g)
        o Wireless transmitter: 200 g (7.1 oz.)
        o Sensing probes (typical 4 x 10ft probe cable): 350 grams
           (12.3 oz.)
• Adjustable sampling interval
• Resolution: 0.1°C (0.05°F)
• Working temperature: -40°C to +65°C (-40°F to
+150°F)
• Long communication range: 1.0km (0.62mi) free space
• Customizable probe length: up to 6m (20ft)
• Ingress Protection: IP65, weatherproof and
protected against rain, snow, and UV exposure
• Small size:
        o Wireless transmitter: 140.21mm (5.52”) x 60.5mm (2.382”)
            x 32.5mm (1.28”)
• Power source: replaceable lithium-ion battery
