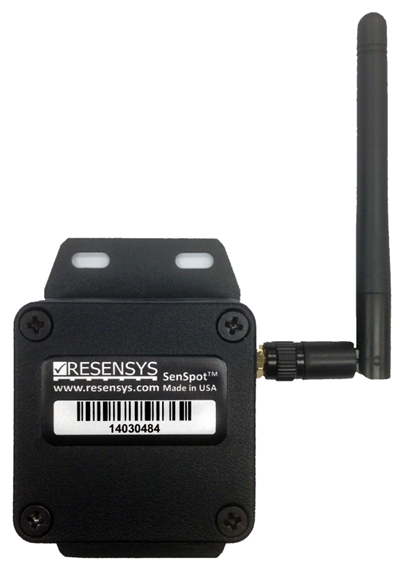

Wireless Vibration/Acceleration SenSpot™ Sensor

Description

SenSpot™ provides an easy to install, scalable solution for distributed structural integrity monitoring. Resensys SenSpot™ technology offers a high performance method for large-scale sensing, wireless synchronization, and ultra-energy efficient wireless communication. SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance during its entire service life. Due to small size and lightweight, adhesive-mount Sen-Spot™ sensors can be applied easily to as many critical spots on a structure as needed, with minimal installation effort. SenSpot™ vibration can be used on different elements of a structure to monitor vibration.

Features
  • Long lifetime: (minimum expected life without battery replacement 10 years)
  • Lightweight: about120 g (4.23 oz.)
  • Easy mounting:
    • Self-adhesive, no drilling is required (e.g. steel)
    • Flange-mount, drilling is required (e.g. concrete)
    • Quick installation, 1-2 minutes
  • High accuracy: 1mg resolution
  • Wide working temperature: -40 to +65°C (-40 °F to +150°F)
  • Long communication range: 1.0km free space

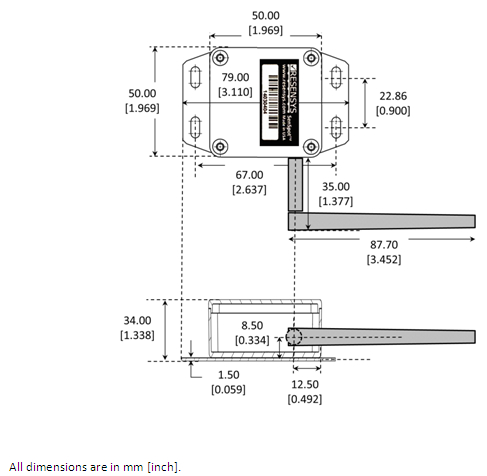

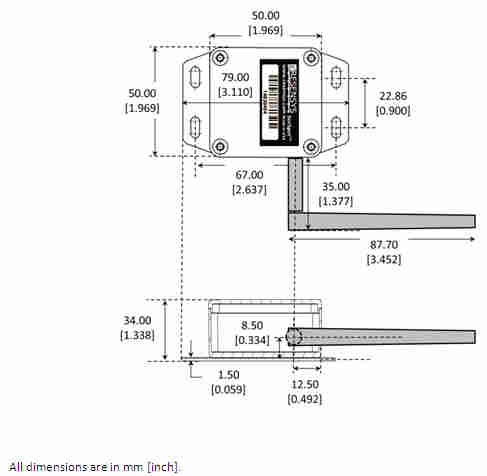

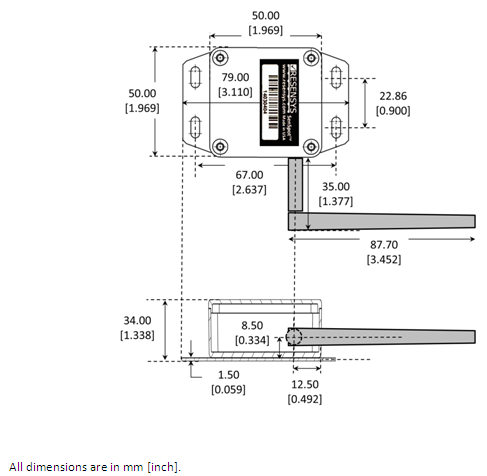

  • Small size:
    • Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 50mm (1.34”)
  • Complementary sensing: temperature, battery voltage, etc.
Applications

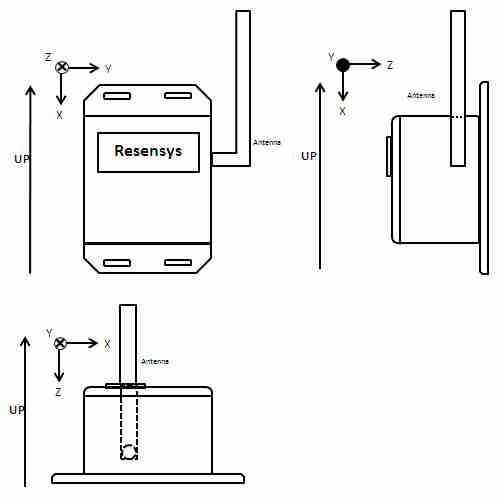

  • Monitors single axis or tri-axial acceleration

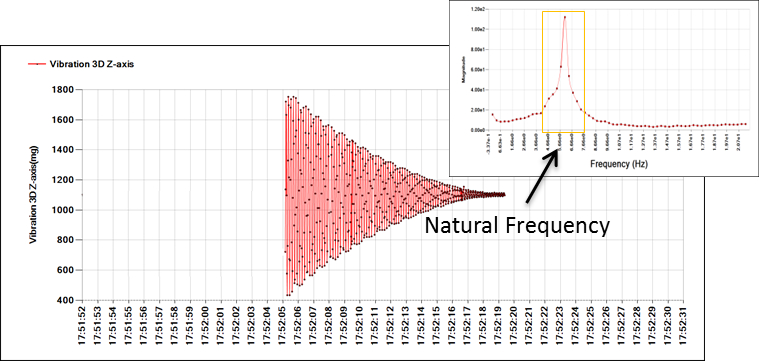

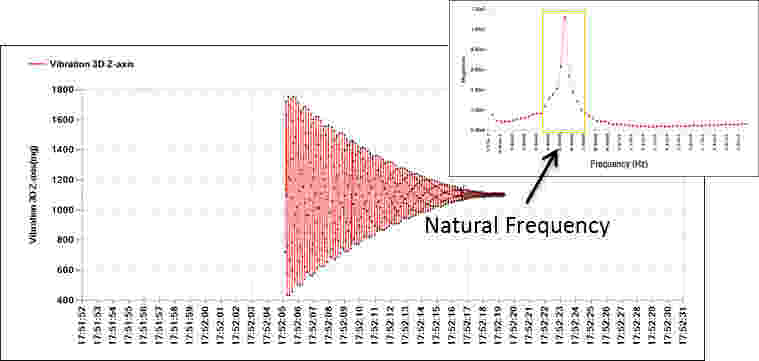

  • Calculates natural frequencies/ modal analysis
  • Detects shift in natural frequencies
