Wireless Ultrasonic Level Meter SenSpot™ Sensor

Description

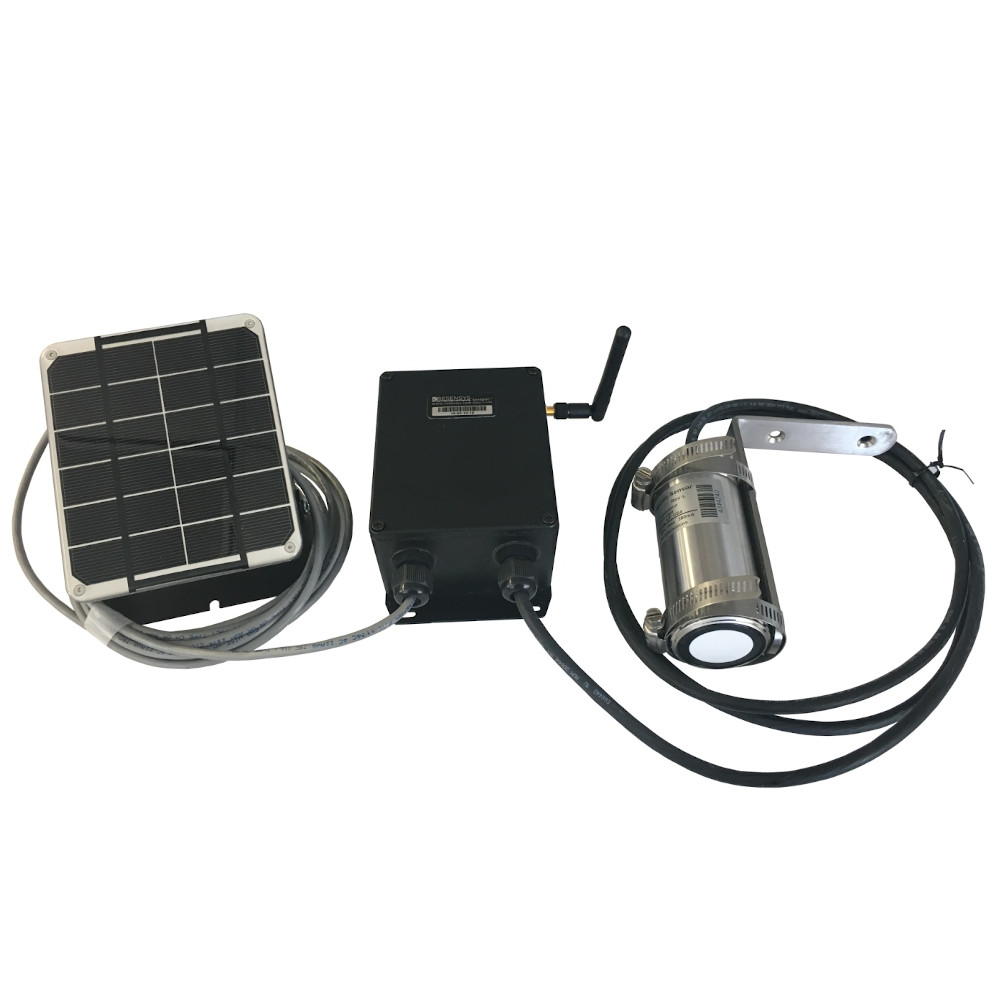

SenSpot™ wireless ultrasonic level/height meter provides an easy way to install a scalable solution for measuring distance (e.g. water level or height, object detection and dimensions). It comes with high capacity lithium-ion battery and solar panel and its mount. As a result, it does not require battery replacement and once installed, it is almost maintenance free. The whole product has IP65 protection (completely weatherproof) thus, it is an excellent choice for meteorological instrumentation applications that require the sensors to be installed some outdoor and often hard to access places.

It uses an ultrasonic distance meter (ToughSonic® 30 Level & Distance Sensor from Senix Distance Measurement).

This product uses Resensys’s proprietary Active RF Technology, just the same as other products of Resensys. Resensys ART technology offers a high performance method for large-scale sensing, wireless synchronization and ultra-energy efficient wireless communication.

It can also serve as SenSpot™ repeater at the same time to extend the wireless communication range between SenSpot™ and SeniMax™.

Features

• Long lifetime: (minimum expected life without battery replacement 10 years)
• Lightweight：
  • Wireless transceiver: 450 g (1 lb)
  • Ultrasonic distance meter: 0.8kg (1.8 lb)
  • Solar panel: 100 g (3.5 oz)
• Easy mounting
  • Self-adhesive, no drilling is required (e.g. steel)
  • Flange-mount, drilling is required (e.g. con-crete)
  • Quick installation, 1-2 minutes
• High accuracy:
  • Max range: 9.1m (30 ft)
  • Resolution: 3cm (0.1 ft)
  • Dead band: Typ. <25.4cm (10 in.)
• Wide working temperature: -40 to +65°C (-40 °F to +150°F)
• Long communication range: 1.0km (0.62mi) free space
• Small size:

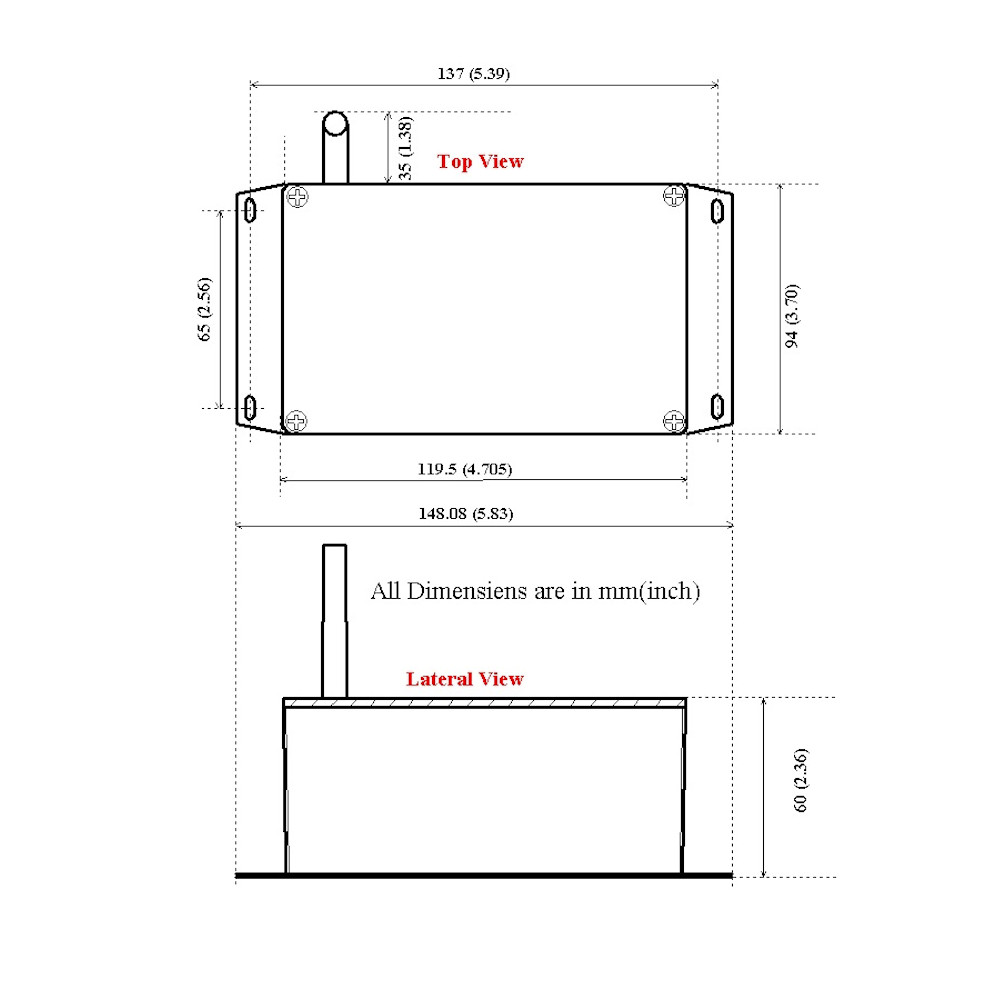

  • Wireless transmitter: 148.08mm (5.83”) x 148.08mm (5.83”) x 60mm (2.36”)
  • Ultrasonic Probe :
    • Height 11cm (4.33”)
    • Radius : 2.5cm (1”)
    • Mounting: 15cm (5.90”) * 10cm (3.94”) corner brace
• Complementary sensing: temperature, battery voltage, etc.

Applications

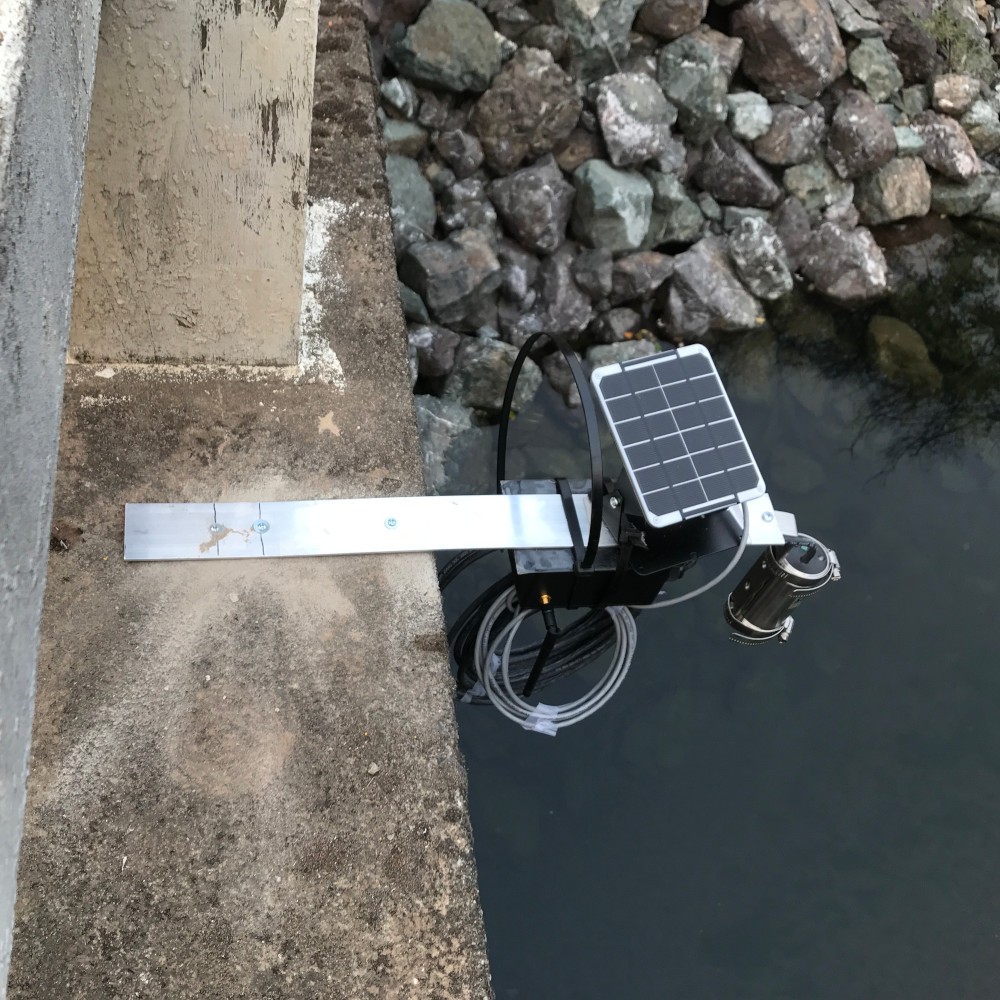

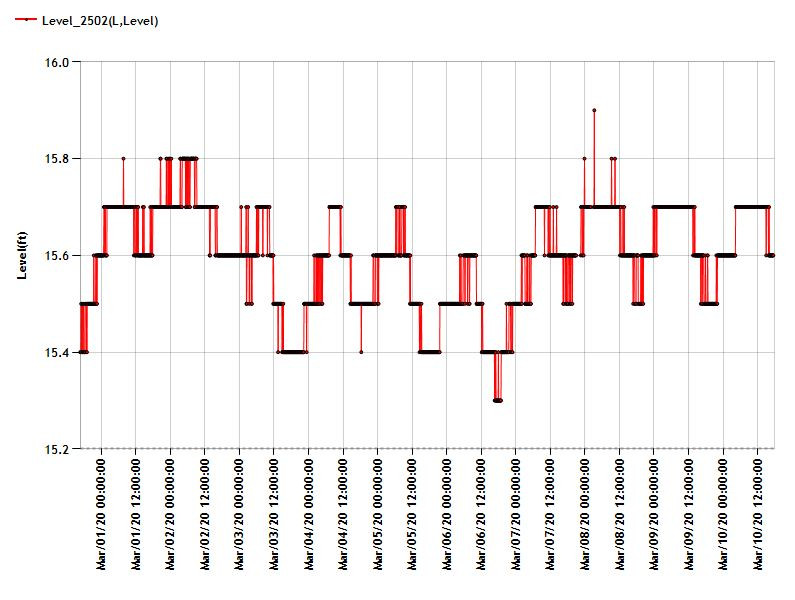

• Waterlevel monitoring
• Flood watch

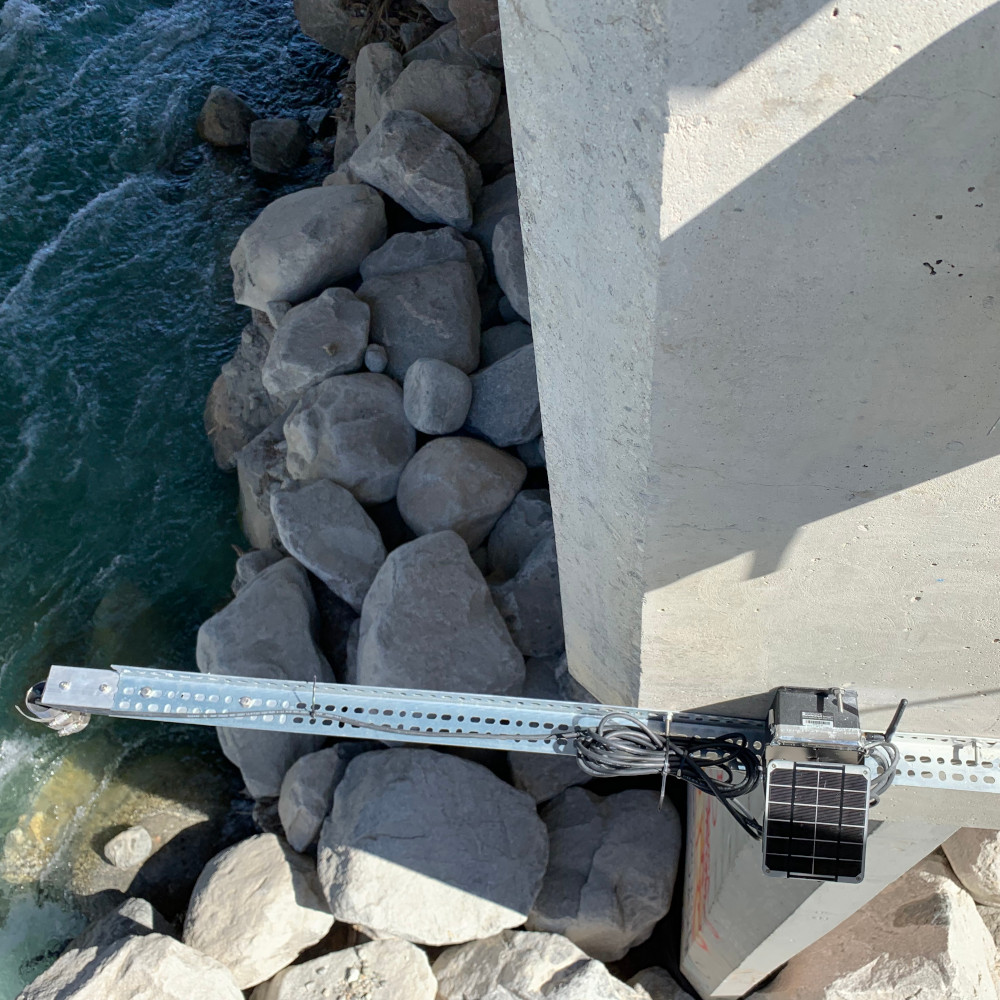

• Monitor sediment around piers
• Non-contact distance measuring
