SeniMax™
Resensys SeniMax™ is an ultra low power and high
performance data collector and remote communication
gateway. SeniMax™ communicates with SenSpot™
sensors using IEEE802.15.4 protocol. Wireless
communication between SeniMax™ and SenSpot™
sensors uses unlicensed ISM 2.4GHz band. SeniMax™
has capability to communicate the aggregated data of SenSpot™ sensors to any remote data center
using cellular data services. Different versions of SeniMax™ for remote communication using Verizon
CDMA network or using GPRS network are available. Additionally, SeniMax™ can be used as a data
logger, where it receives data of SenSpot™ sensors, and stores them. The logged data can later be
transferred to a computer.
A single SeniMax™ device can cover up to 1000 SenSpot sensors in its communication range. SeniMax
is ideal solution in applications of distributed sensing and data acquisition where there is no access to
main power or communication infrastructures. Particular applications include: structural integrity
monitoring for highway bridges, airframes, construction projects, pipelines, etc.
- Ultra low power: consuming only 20mW

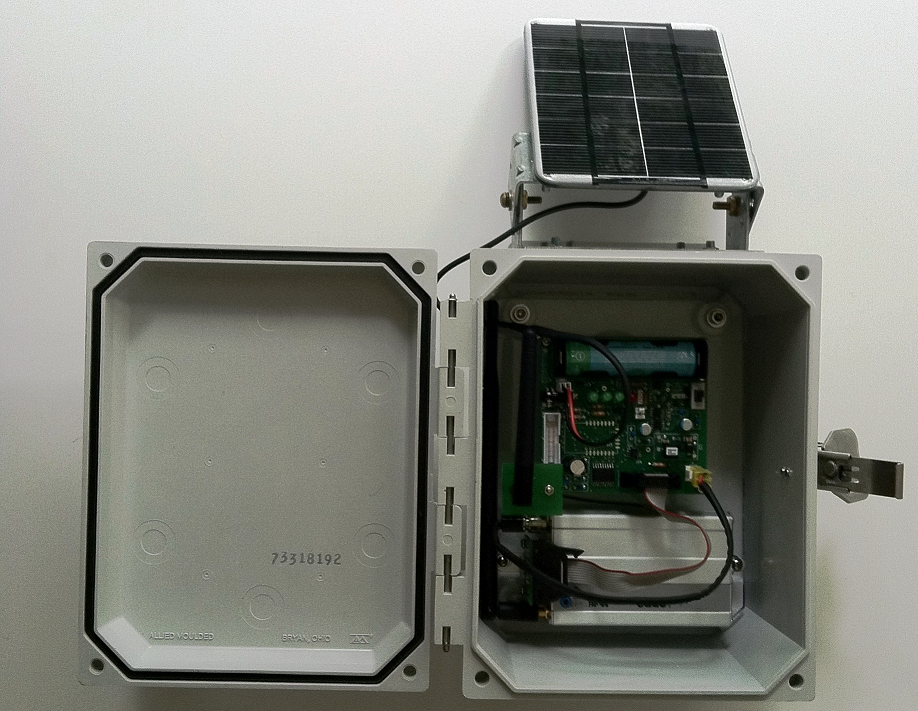

- Energy self sufficient: solar powered
- Wireless protocols:
- IEEE 802.15.4 (for communication with SenSpot™ sensors)
- CDMA or GPRS (for communication with remote monitoring center)
- Low cost, low profile, and scalable
- Weatherproof IP65 protection
- Coverage: up to 1000 SenSpot™ sensors
- Lightweight: 1.5Kg
